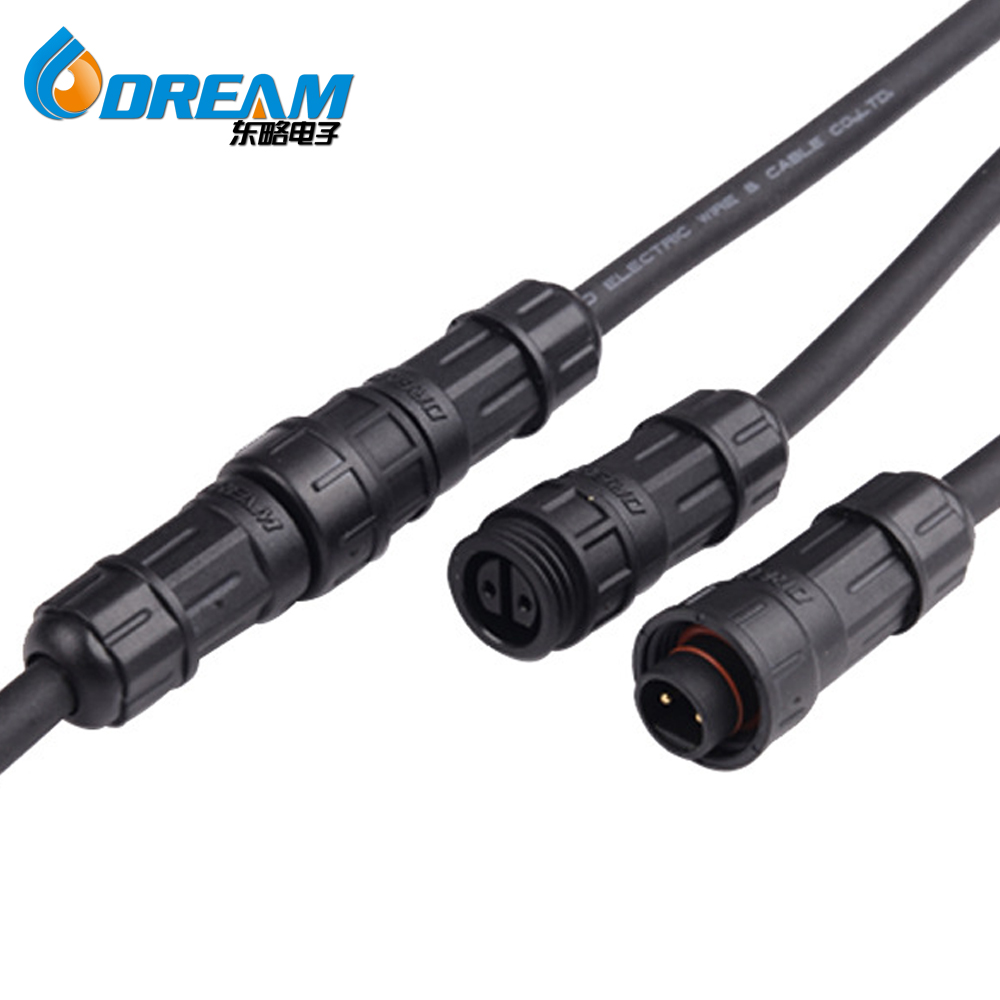

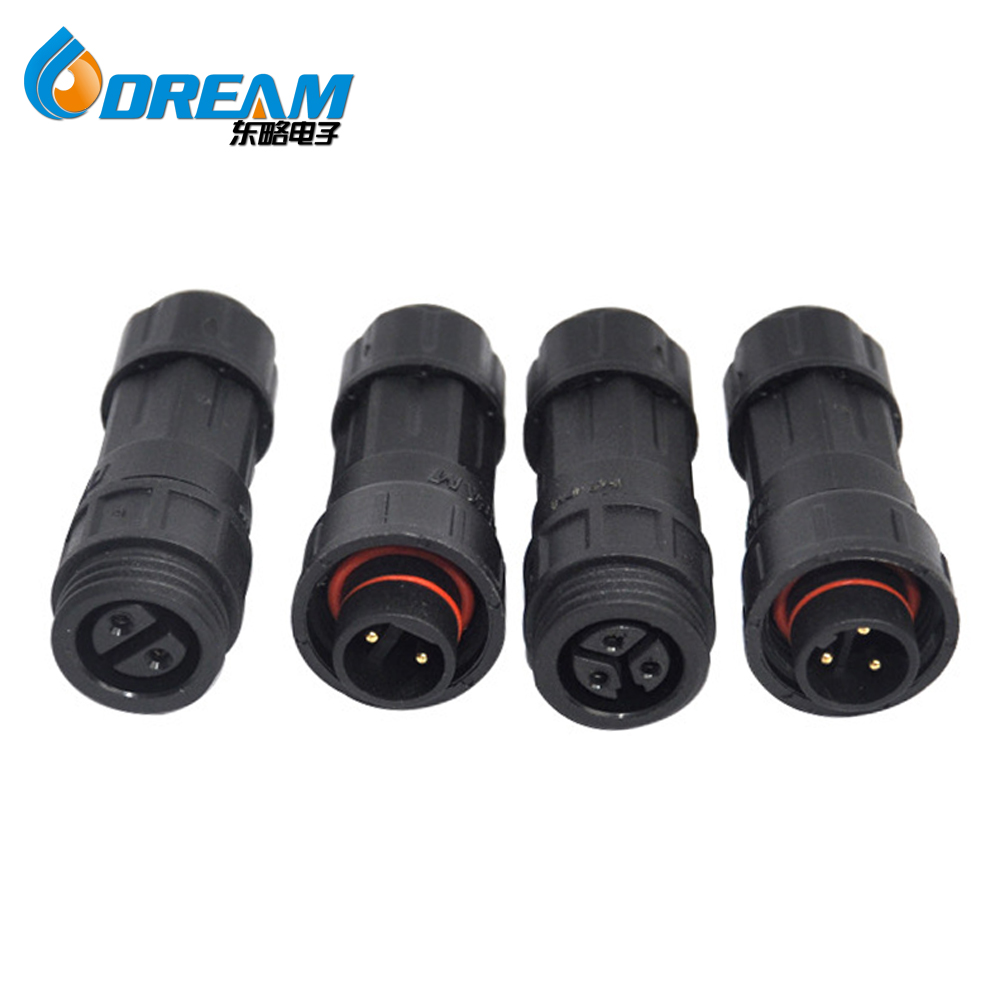

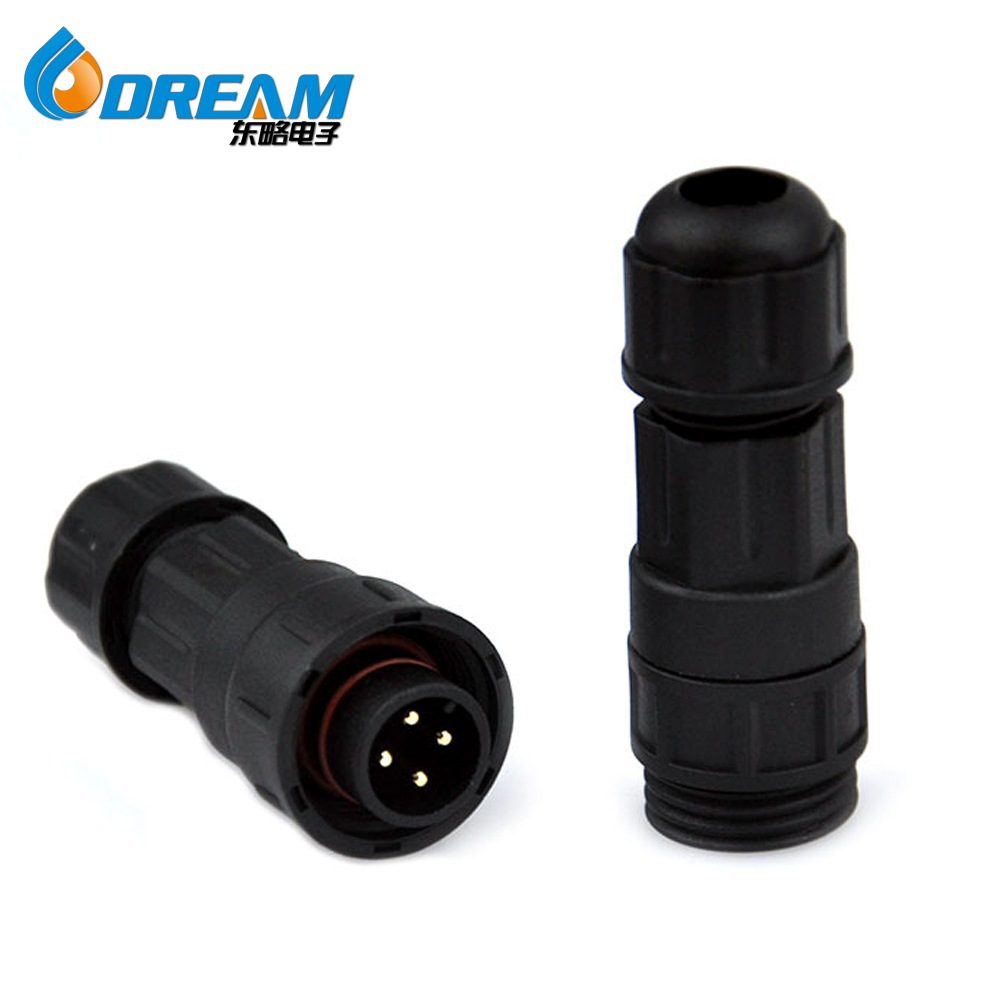

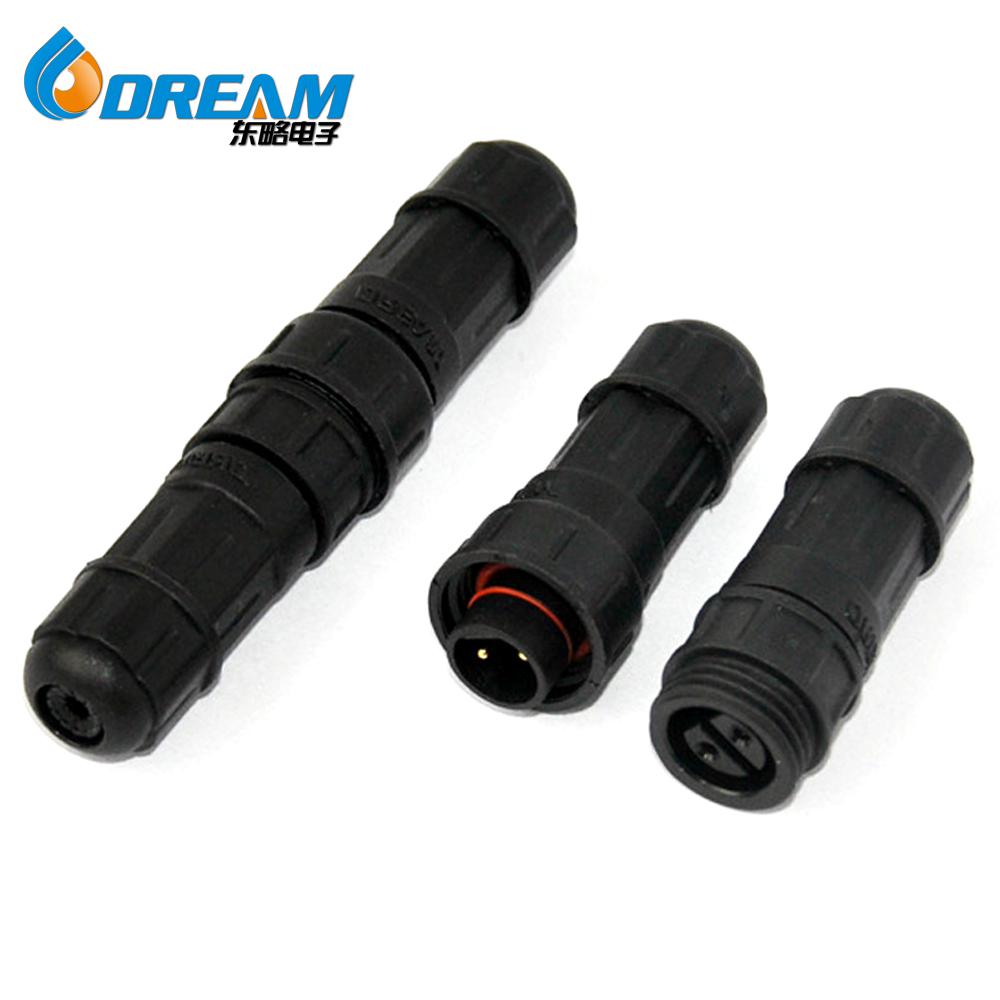

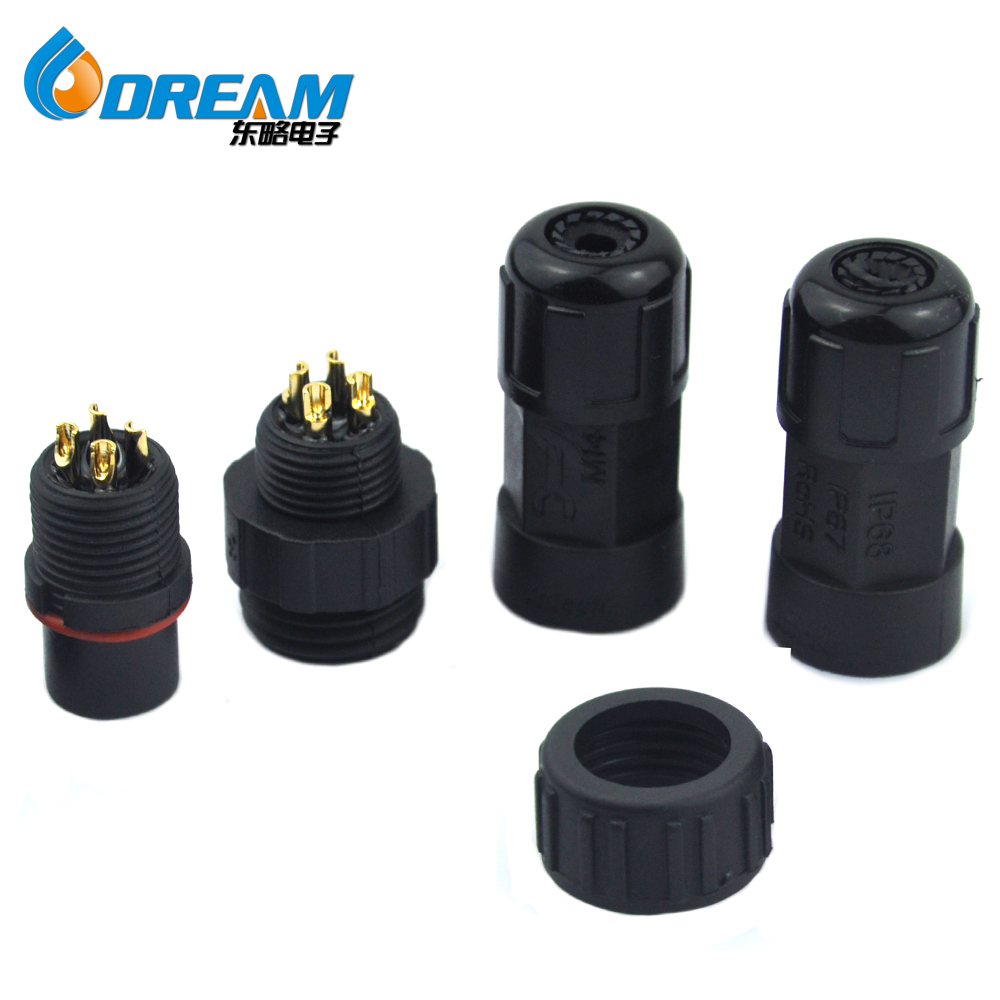

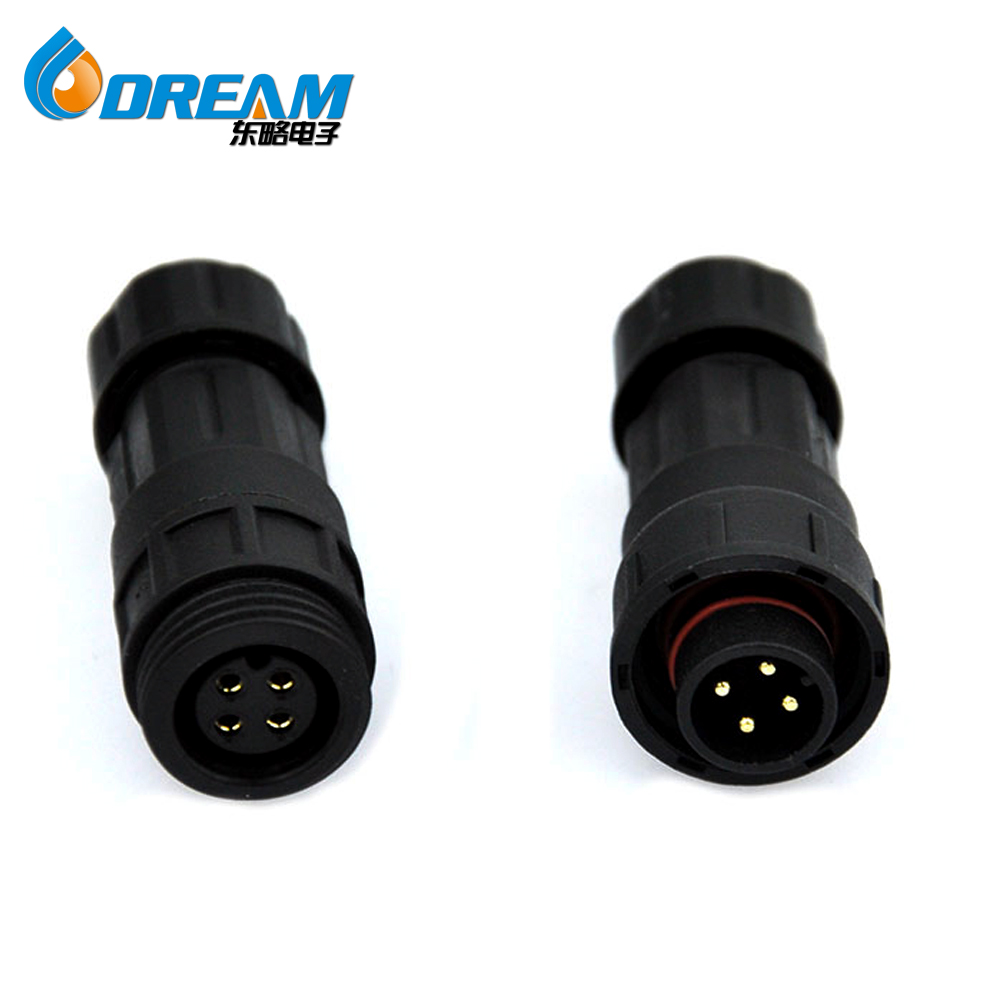

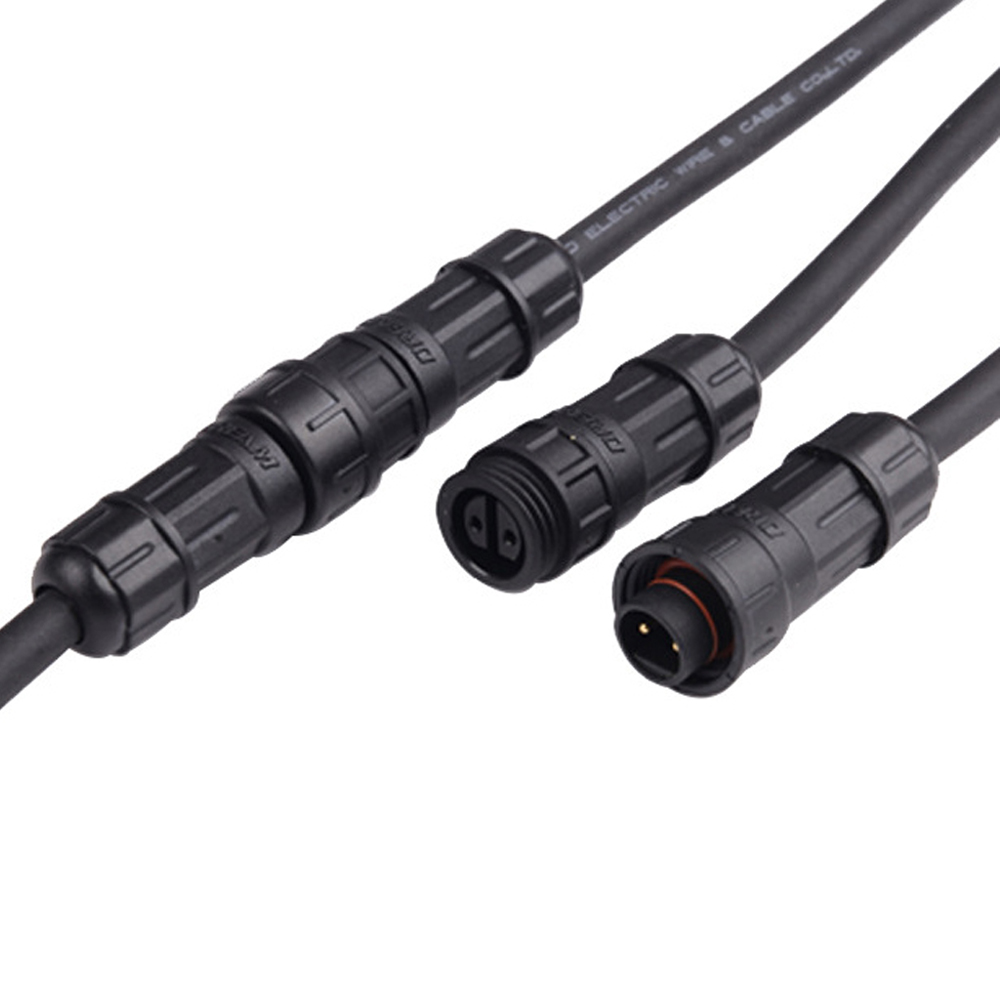

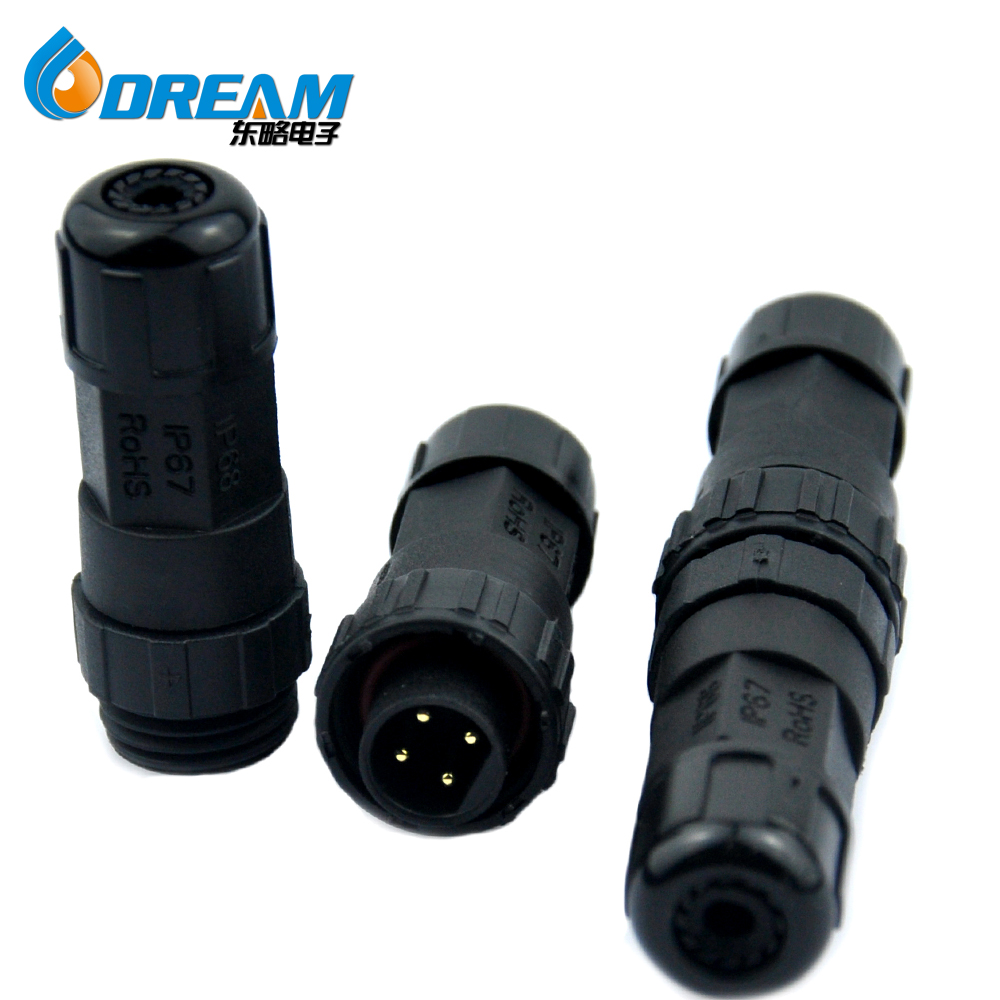

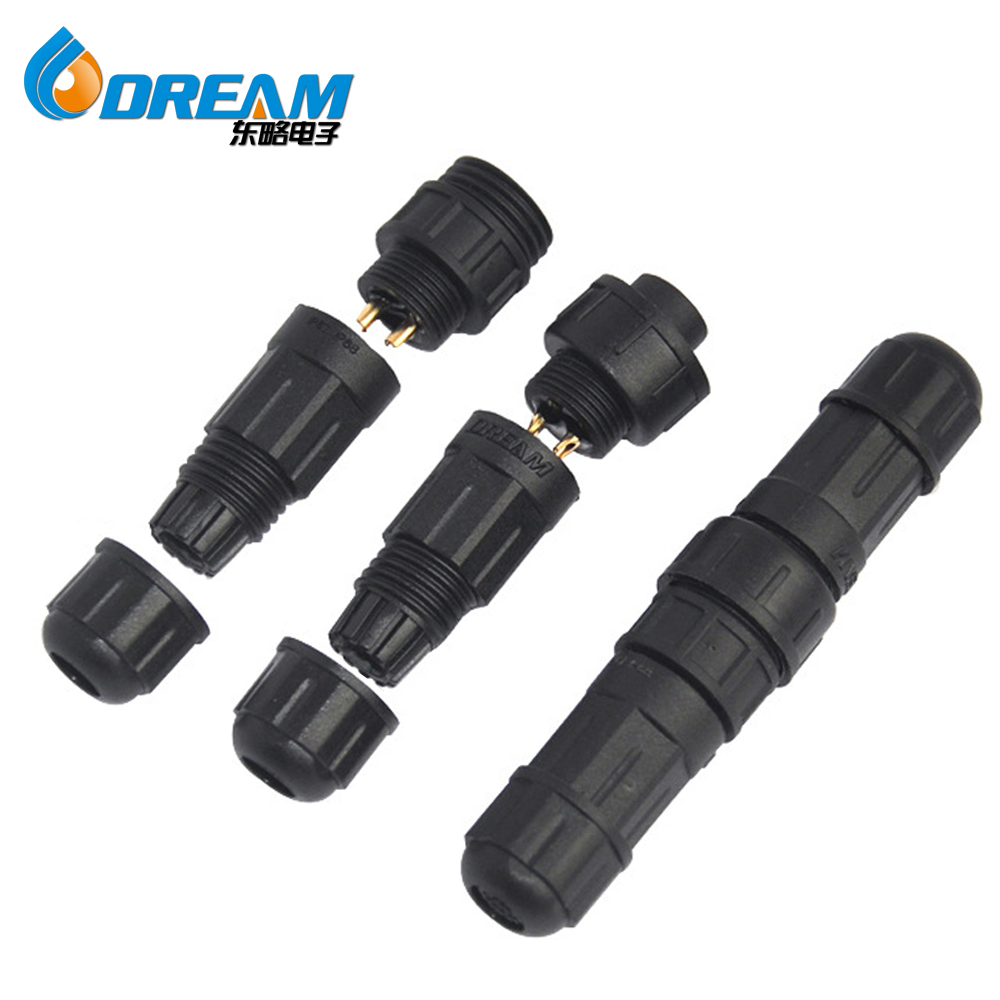

IP68 Plastic M16 Mini Screw Type 4 Pin Male Female Power Connector 4 Pin Waterproof Connector
| 機械性能(Mechanical Property) | ||||

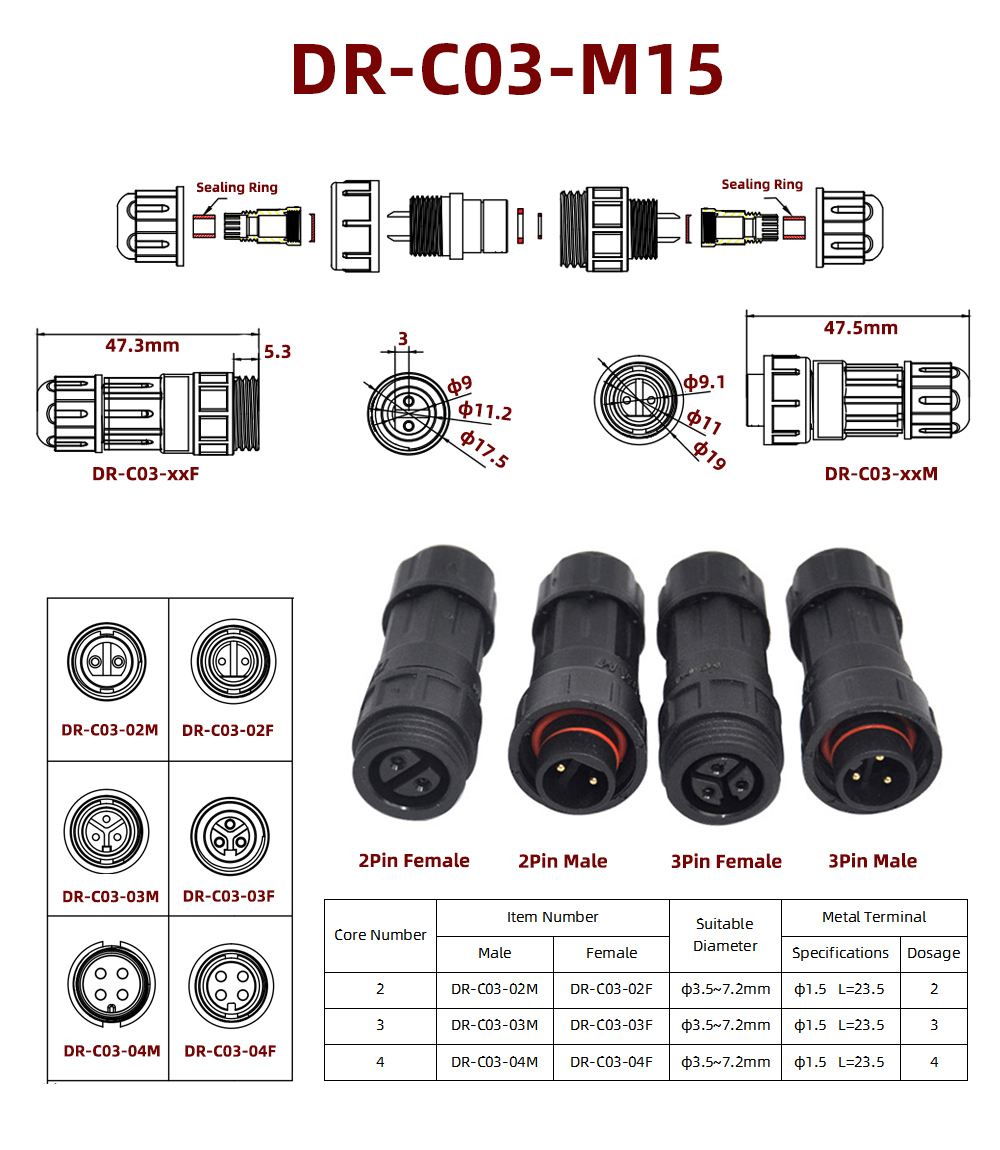

產品尺寸(Size) | 公頭 (Male) | 母頭 (Female) | 成品 (F1n1shed Product) | |
| φ19*47.3mm | φ19*47.5mm | |||
| 接觸對數(Contact Cores) | 2Pin~4Pin | 5Pin~6Pin | 2+4Pin | 2+6 Pin |
| 公針直徑(Male Pin Diameter) | φ1.5mm | φ1.0mm | 2*φ1.5+4*φ0.8mm | φ10.+4*φ0.6mm |
| 公針材質(Male P in Material) | 銅／銅合金 (鍍金/鍍鎳） Copper/Copper Alloy (Gold Plating/ Nickel Plating) | |||
| 母針材質(Male Pin Material) | 銅／銅合金（鍍金/鍍鎳） Copper/Copper Alloy (Gold Plating/ Nickel Plating) | |||
| 外模材質(Over-Mold Material) | PA66 | |||
| 絕緣體材質(Insulator Material) | PA66+30%纖 | |||
| 適用線纜規格(Wire Spec1f1cat1ons) | 28AWG---14AWG | |||
| 用線纜外徑(Wire Diameter) | φ3.5 ~ φ7.2 | |||
| 防護等級(Protective Level) | IP68 | |||
| 耐溫環境(Tempreture Env1roment) | -40℃ ~ 125 ℃ | |||
| 插撥次數(Plug/Unplug Durab山ty) | 1000 | |||
| 電氣性能(Electrical Property) | ||||
| 額定電流(Rated Current) | 10A | 4.0A | 10A+2.5A | 4A+2A |
| 額定電壓(Rated Voltage) | 250V | 250V | 60V | 60V |
| 測試電壓(Test Voltage) | 1000V | 1000V | 500V | 500V |
| 接觸電阻(Contact Resistance) | 10 MΩ | 10 MΩ | 10 MΩ | 10 MΩ |
| 絕緣電咀(Insulation Resistance) | 200 MΩ | 200 MΩ | 200 MΩ | 200 MΩ |
